Double Beam Spectrophotometer UV-1950

Double Beam Spectrophotometer UV-1950

₹233,640 – ₹289,100

₹233,640 – ₹289,100

Salient Features:

SALIENT FEATURES:

• User-Friendly Display: 7″ color LCD with intuitive interface.
• Seamless Data Management :1 GB storage, USB/SD support.
• Efficient Scanning
• Pharma-Grade Precision
• Built for Stability: Rigid base ensures precision.
• Options: 8-cell holder, Peltier system, 21 CFR software.
• Precision Optics: Double beam, 1200 lines/mm grating.
• Versatile Software: Supports wavelength scanning, standard curves, kinetics, multi-wavelength, and DNA/protein tests

This instrument is widely used in petroleum, chemical, pharmaceutical, sugar, refining, research and food industries. This spectrophotometer also has wide scope of use in related colleges, universities & scientific research institutions for meaning the photometric value of samples.

FUNCTIONS:

• Two detectors are used to measure sample and reference respectively and simultaneously
• Improved Circuit: Improved design prevents circuit fluctuations and stray light to ensure stability of the instrument.
• Sturdy Design: It uses a rigid base to ensure stability & reliability

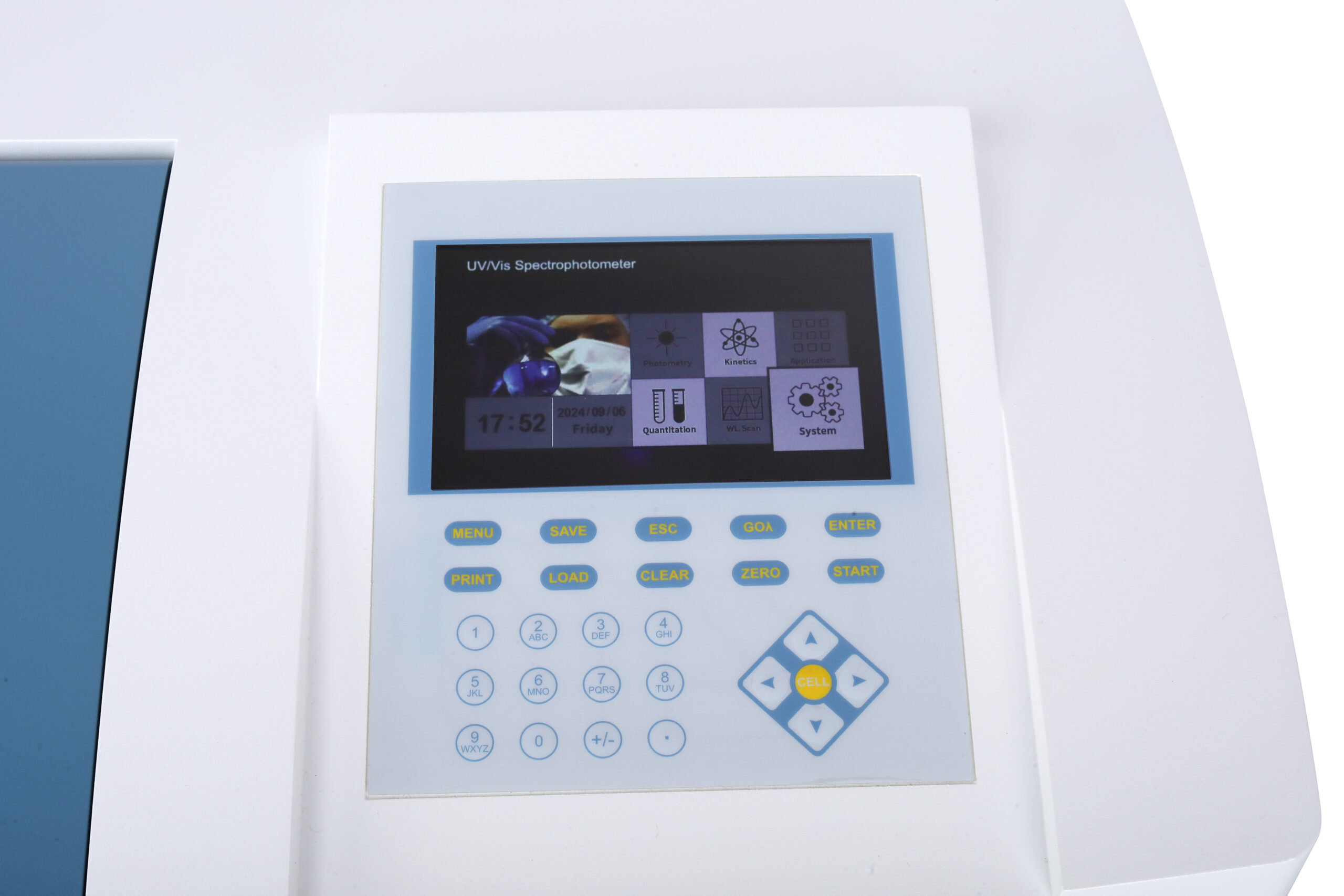

• Large Touchsreen Display: It sports a large touchscreen display to show results and curves directly on the screen
• Multi functions in the software enables the user to toggle between variety of functions such
as wavelength scanning, standard curve, kinetics, multi wavelength scanning, DNA/protein test
• Data can be saved in csv file. Data can be exported through a USB drive & bluetooth.
• Has a function for filtering & smoothing the peaks of measurement.

Model

UV-1950

Make

Galaxy

Bandwidth

1 nm

Cell holder

Sample and reference cuvette holder (both 10 mm)

Optical system

Double beam (1200 lines/mm grating)

Wavelength Range

190-1100 nm

Wavelength Accuracy

± 0.3 nm

Wavelength Repeatability

±0.1 nm

Scanning Speed

Fast, Medium, slow (Max. 3000 nm/min)

Photometric Range

-0.3~3A, 0~200%T, 0~9999C

Photometric Accuracy (T)

±0.2%T (0-100%)

Photometric Accuracy (A)

≤±0.002A(0~0.5A), ≤±0.004A(0.5~1A), ≤±0.006A (>2.0)

Photometric Repeatability

≤0.15% T (0-100%), 0.001A (0-0.5A),0.002A (0.5-1 A)

Stability

± 0.0003 A/h @500 nm

Baseline Flatness & noise

±0.0010A, 0.0005A @500nm

Stray Light

<0.03 %T @220 nm, 360 nm

Data Output

USB/RS232

Printer Port

Parallel Port

Display

7″ Colour LCD

Lamps

D2 and Tungsten Halogen lamp

Detector

Silicon Photodiode

Power supply

AC 220 V/50 HZ

Dimension & Weight

590 x 475 x 250 mm & 20 kg

Optional

8-cell holder, peltier/ sipper system, reflection accessories, 21 CFR software

Get A Callback

or

SALIENT FEATURES:

• User-Friendly Display: 7″ color LCD with intuitive interface.
• Seamless Data Management :1 GB storage, USB/SD support.
• Efficient Scanning
• Pharma-Grade Precision
• Built for Stability: Rigid base ensures precision.
• Options: 8-cell holder, Peltier system, 21 CFR software.
• Precision Optics: Double beam, 1200 lines/mm grating.
• Versatile Software: Supports wavelength scanning, standard curves, kinetics, multi-wavelength, and DNA/protein tests

This instrument is widely used in petroleum, chemical, pharmaceutical, sugar, refining, research and food industries. This spectrophotometer also has wide scope of use in related colleges, universities & scientific research institutions for meaning the photometric value of samples.

FUNCTIONS:

• Two detectors are used to measure sample and reference respectively and simultaneously
• Improved Circuit: Improved design prevents circuit fluctuations and stray light to ensure stability of the instrument.
• Sturdy Design: It uses a rigid base to ensure stability & reliability
• Large Touchsreen Display: It sports a large touchscreen display to show results and curves directly on the screen
• Multi functions in the software enables the user to toggle between variety of functions such as wavelength scanning, standard curve, kinetics, multi wavelength scanning, DNA/protein test
• Data can be saved in csv file. Data can be exported through a USB drive & bluetooth.
• Has a function for filtering & smoothing the peaks of measurement.

Model

UV-1950

Make

Galaxy

Bandwidth

1 nm

Cell holder

Sample and reference cuvette holder (both 10 mm)

Optical system

Double beam (1200 lines/mm grating)

Wavelength Range

190-1100 nm

Wavelength Accuracy

± 0.3 nm

Wavelength Repeatability

±0.1 nm

Scanning Speed

Fast, Medium, slow (Max. 3000 nm/min)

Photometric Range

-0.3~3A, 0~200%T, 0~9999C

Photometric Accuracy (T)

±0.2%T (0-100%)

Photometric Accuracy (A)

≤±0.002A(0~0.5A), ≤±0.004A(0.5~1A), ≤±0.006A (>2.0)

Photometric Repeatability

≤0.15% T (0-100%), 0.001A (0-0.5A),0.002A (0.5-1 A)

Stability

± 0.0003 A/h @500 nm

Baseline Flatness & noise

±0.0010A, 0.0005A @500nm

Stray Light

<0.03 %T @220 nm, 360 nm

Data Output

USB/RS232

Printer Port

Parallel Port

Display

7″ Colour LCD

Lamps

D2 and Tungsten Halogen lamp

Detector

Silicon Photodiode

Power supply

AC 220 V/50 HZ

Dimension & Weight

590 x 475 x 250 mm & 20 kg

Optional

8-cell holder, peltier/ sipper system, reflection accessories, 21 CFR software

Get A Callback

or
