Dry Bath Incubator

28,910.0043,070.00

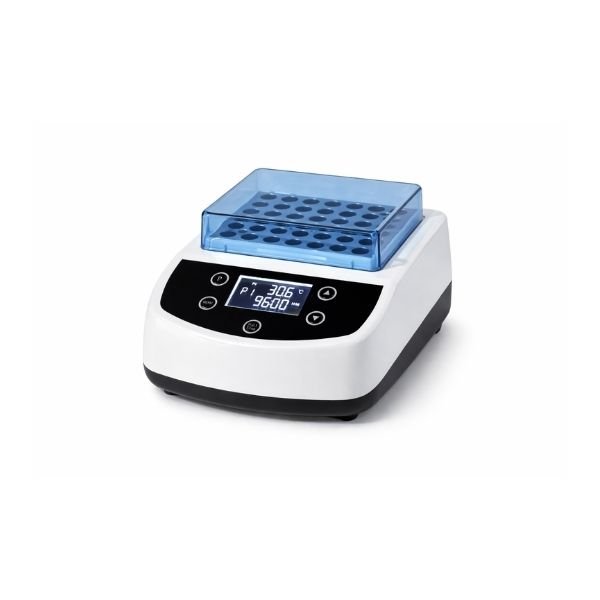

Dry Bath Incubator is a compact, temperature-controlled heating device designed for safe and uniform incubation of samples without water. It uses interchangeable heating blocks to accommodate various tube sizes, making it ideal for molecular biology, clinical diagnostics, and laboratory research. With precise temperature control, fast heat-up, and maintenance-free operation, it ensures reliable performance for enzyme reactions, sample preservation, and general lab heating applications.

Description

The Dry Bath Incubator is a versatile laboratory heating instrument engineered for accurate and uniform temperature control of biological and chemical samples. Designed to accommodate microtubes, PCR tubes, and sample vials, this compact device eliminates the need for water baths, offering a clean, maintenance-free solution for routine laboratory heating applications.

Compact and lightweight, the Dry Bath Incubator fits easily on laboratory benches and is ideal for both centralized labs and field applications. Safety features such as over-temperature protection enhance reliability and protect valuable samples. The durable construction ensures long-term performance even in demanding laboratory environments.

SALIENT FEATURES:

  • Models Available:
    • GDB-10 – Heating only
    • GDB-10C – Heating & Cooling
  • Microprocessor Controlled for high precision and stable performance
  • LCD Display with Touch Keypad for intuitive operation
  • Programmable: Up to 5 groups with 5 temperature points, run independently or in sequence
  • Timing Range: 0 to 99 hours 59 minutes
  • Fast heating/cooling rate
  • Built-in Over-Temperature Protection
  • Compact & Reliable for continuous lab use
  • Timer allows the user to accurately monitor the heating time

Additional information

Incubator

GDB-10, GDB-10C

Specifications

Model GDB-10 GDB-10C
Make Galaxy Galaxy
Temperature Range RT+5 to 105°C RT-20 to 105°C
Temp. Control Accuracy ≤±0.5°C ≤±0.5°C
Temp. Resolution 0.1°C 0.1°C
Temp. Uniformity of Block ≤±0.3°C ≤±0.3°C
Timing Range 1 min to 99h 59 min 1 min to 99h 59 min
Heating Rate ≤15 min (20 to 105°C) ≤15 min (20 to 105°C)
Cooling Rate ≤15 min (100 to 20°C)
Shaking
Orbital Diameter
Display LCD LCD
Programs 9 programs 9 programs
Standard Block 35 x 2ml 35 x 2ml
Power 150 W 150 W
Power Supply AC 220V / 50 Hz AC 220V / 50 Hz
Dimensions 120 × 170 × 160 mm 120 × 170 × 160 mm
Weight 2.2 kg 2.2 kg

Downloads

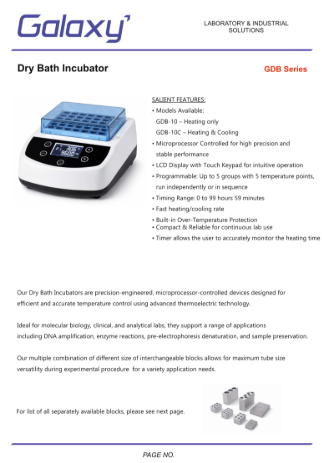

Catalogue Dry Bath Incubator
Download PDF
