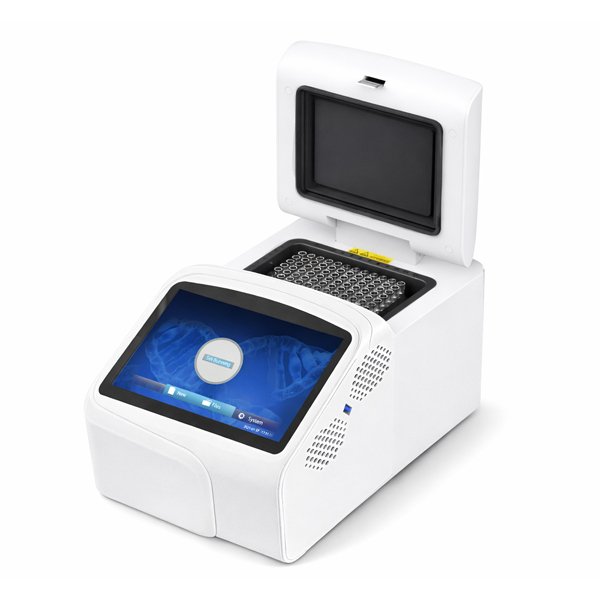

Gradient Thermal Cycler PCR

Gradient Thermal Cycler PCR

Original price was: ₹227,858.00.Current price is: ₹159,500.00.

The Gradient Thermal Cycler PCR is an advanced laboratory instrument designed to deliver precise, reliable, and reproducible DNA amplification for molecular biology and diagnostic applications. Built with a high-performance temperature control system, this thermal cycler allows users to run multiple annealing temperatures simultaneously through its gradient function, making PCR optimization faster and more efficient.

SKU: PCR-96 Categories: ,

Description

The Gradient Thermal Cycler PCR is an advanced polymerase chain reaction instrument designed to deliver precise, reliable DNA amplification with enhanced flexibility. Equipped with a gradient temperature function, this thermal cycler enables simultaneous optimization of annealing temperatures across multiple gradients—perfect for assay development, primer testing, and high-efficiency amplification.

Featuring a robust thermal block and uniform heating and cooling performance, the Gradient Thermal Cycler ensures consistent results for a wide range of applications including genetic research, cloning, mutation analysis, clinical diagnostics, and forensic studies. Its intuitive touchscreen interface and programmable protocol settings make it simple to design, save, and run complex thermal profiles with ease.

Precise temperature control, low block uniformity variation, and rapid ramp rates contribute to high amplification fidelity and reproducibility.

SALIENT FEATURES:

  • High-quality semiconductor for excellent amplification
  • Industrial-grade operating system for reliable performance
  • Wide 36 °C gradient range for easy protocol optimization
  • 7-inch touchscreen for simple editing, operation, and program storage
  • USB flash memory support for data saving
  • Compact and space-saving design
  • High-precision temperature control with uniform heating
  • Fast heating and cooling using advanced thermoelectric cooling technology



Specifications

Model PCR-96
Make Galaxy
Temperature Control Method Tube or Block
Sample Capacity 96 × 0.2 ml
Compatible Ware 96-well × 0.2 ml (Full-skirted plate, half-skirted plate, non-skirted plate)
12 × 8 strip tubes, 8 × 12 strip tubes, Single tube
Technology Thermoelectric semiconductor
Block Temperature Range +4 to 105°C
Temperature Accuracy ≤ ±0.1°C (at 55°C), else ±0.25°C
Temperature Uniformity ±0.3°C
Maximum Heating Rate 4.5°C/sec
Maximum Cooling Rate 3.5°C/sec
Heating Lid Temperature Range +5 to 110°C
Heating Lid Temperature Accuracy ±0.1°C
Gradient Range 30 to 100°C
Gradient Temperature Accuracy ±0.3°C
Gradient Temp. Difference Range 0.1–36°C
Single Step Time Range 1–59m 59s (0 is forever)
Max. Cycle Number 99
Time Increment / Decrement 0–9 min 59 sec, long PCR available
Temp. Increment / Decrement 0.1–9.9°C, touchdown PCR available
Auto Pause / Power-off Protection Available
Intelligent Heating Lid Hot lid shut-off automatically when product is preserved at low temperature or program ends
TM Calculation Model Available
Real-time Operation Status Available
Program Storage Quantity >100
Display Interface Touch Screen (7 inch)
Power Supply AC 220V / 50 Hz
Dimensions & Weight 280 × 187 × 193 mm / 7 kg

Downloads

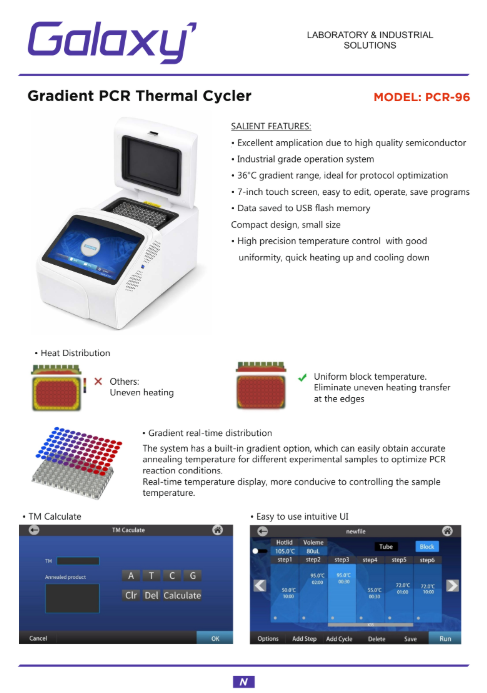

Catalogue Gradient Thermal Cycler PCR
