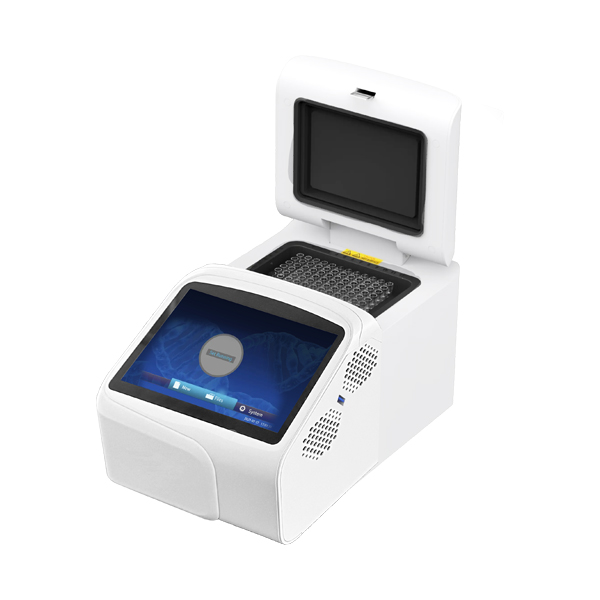

Gradient Thermal Cycler PCR

Gradient Thermal Cycler PCR

Original price was: ₹227,858.00.Current price is: ₹159,500.00.

The Gradient Thermal Cycler PCR is an advanced laboratory instrument designed to deliver precise, reliable, and reproducible DNA amplification for molecular biology and diagnostic applications. Built with a high-performance temperature control system, this thermal cycler allows users to run multiple annealing temperatures simultaneously through its gradient function, making PCR optimization faster and more efficient.

SKU: PCR-96 Category:

Description

SALIENT FEATURES:

  • High-quality semiconductor for excellent amplification
  • Industrial-grade operating system for reliable performance
  • Wide 36 °C gradient range for easy protocol optimization
  • 7-inch touchscreen for simple editing, operation, and program storage
  • USB flash memory support for data saving
  • Compact and space-saving design
  • High-precision temperature control with uniform heating
  • Fast heating and cooling using advanced thermoelectric cooling technology



Specifications

Model PCR-96
Make Galaxy
Temperature Control Method Tube or Block
Sample Capacity 96 × 0.2 ml
Compatible Ware 96-well × 0.2 ml (Full-skirted plate, half-skirted plate, non-skirted plate)
12 × 8 strip tubes, 8 × 12 strip tubes, Single tube
Technology Thermoelectric semiconductor
Block Temperature Range +4 to 105°C
Temperature Accuracy ≤ ±0.1°C (at 55°C), else ±0.25°C
Temperature Uniformity ±0.3°C
Maximum Heating Rate 4.5°C/sec
Maximum Cooling Rate 3.5°C/sec
Heating Lid Temperature Range +5 to 110°C
Heating Lid Temperature Accuracy ±0.1°C
Gradient Range 30 to 100°C
Gradient Temperature Accuracy ±0.3°C
Gradient Temp. Difference Range 0.1–36°C
Single Step Time Range 1–59m 59s (0 is forever)
Max. Cycle Number 99
Time Increment / Decrement 0–9 min 59 sec, long PCR available
Temp. Increment / Decrement 0.1–9.9°C, touchdown PCR available
Auto Pause / Power-off Protection Available
Intelligent Heating Lid Hot lid shut-off automatically when product is preserved at low temperature or program ends
TM Calculation Model Available
Real-time Operation Status Available
Program Storage Quantity >100
Display Interface Touch Screen (7 inch)
Power Supply AC 220V / 50 Hz
Dimensions & Weight 280 × 187 × 193 mm / 7 kg

Downloads

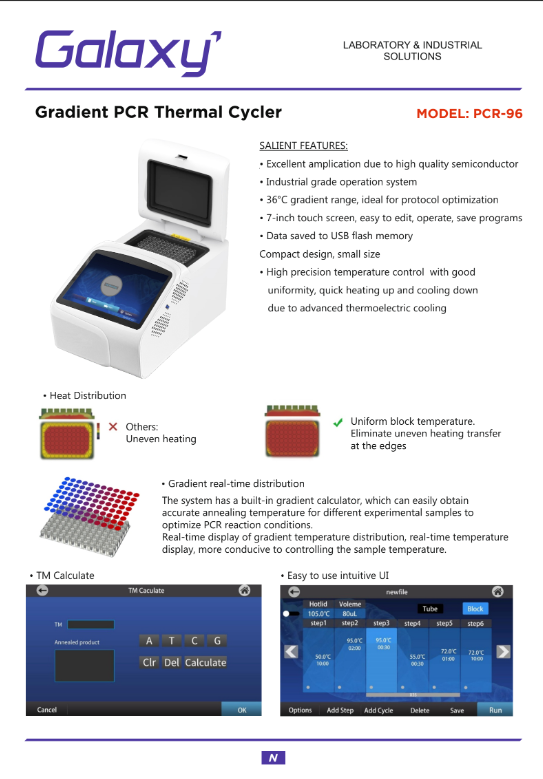

Catalogue Gradient Thermal Cycler PCRDownload PDF
