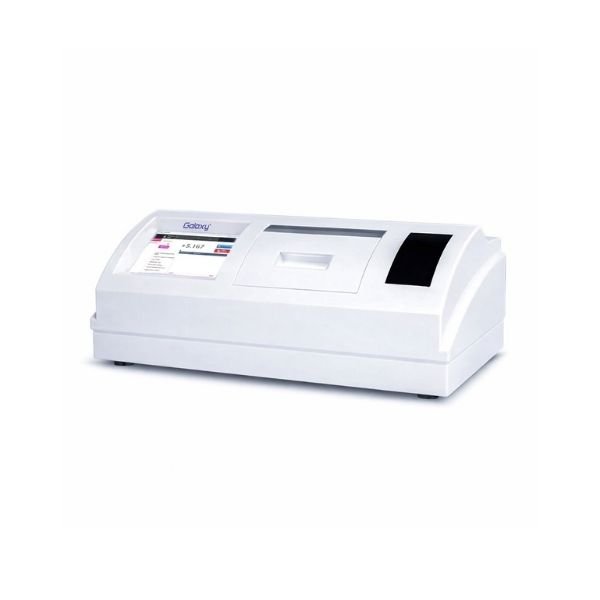

Automatic Digital Polarimeter

₹273,760.00 – ₹541,620.00

Automatic Digital Polarimeter is a precision optical instrument used to measure optical rotation of chiral substances with high accuracy and repeatability. It provides fast digital readings, automated operation, and reliable performance, making it ideal for pharmaceutical, chemical, food, and research laboratories.

SKU: N/A Categories: , Tag:

Description

An Automatic Digital Polarimeter is a precision analytical instrument used to measure the optical rotation of optically active substances. It plays a critical role in determining concentration, purity, and specific rotation in industries such as pharmaceuticals, chemicals, food processing, and research laboratories.
The Automatic Digital Polarimeter is widely applied in pharmaceutical quality control, sugar analysis, chemical synthesis, essential oil testing, and academic research. It supports multiple measurement modes and is compatible with standard sample tubes, making it suitable for routine analysis as well as detailed research applications.
SALIENT FEATURES:

ADP-90:

  • 7-inch intuitive touch screen
  • High resolution of 3 decimal places
  • Multiple communication interfaces: USB, RS232
  • Windows operating system makes the device very easy to use
  • Data storage: 1000 groups
  • LED cold light source replaces traditional sodium light resulting in a long stable life
  • Digital Polarimeter based on Optical null principle
  • No warm up required

ADP-90P:

  • 7-inch intuitive touch screen
  • High resolution of 3 decimal places
  • Multiple communication interfaces: USB, RS232
  • Windows operating system makes the device very easy to use
  • Data storage: 1000 groups
  • LED cold light source replaces traditional sodium light resulting in a long stable life
  • Digital Polarimeter based on Optical null principle
  • No warm up required
  • Built-in Peltier temperature control
  • User Management
  • GLMP/GMP/21CFR compliant
  • Multi-user with password protection

Additional information

Polarimeter

ADP-90, ADP-90P

Specifications

Model ADP-90 ADP-90P
Make Galaxy Galaxy
Temperature Control N.A Built-in Peltier System
Temperature Control Range N.A 10 to 50°C
Temp. Control Accuracy N.A ±0.2°C
Constant Temp. Tube N.A 100 mm
Optical & Specific Rotation
Measuring Range -89.99° to +89.99° -89.99° to +89.99°
Unit Angle ° Angle °
Resolution 0.001° 0.001°
Accuracy 0.01° 0.01°
Sugar
Range -257°Z to +257°Z -259°Z to +259°Z
Unit °Z °Z
Resolution 0.01°Z 0.01°Z
Accuracy 0.1°Z 0.1°Z
Concentration
Range 0 to 99.9 g/ml 0 to 99.9 g/ml
Unit g/100ml g/100ml
Resolution 0.1mg/ml 0.1mg/ml
Accuracy ±0.5g/100ml ±0.5g/100ml
Memory 1000 groups 1000 groups
Sample transmittance range ≥1% ≥1%
Operation Wavelength 589.3 nm 589.3 nm
Display 7 inch touchscreen 7 inch touchscreen
Interface USB, RS232 USB, RS232
No. of Measuring Mode 4 (optical rotation, specific rotation, concentration, sugar content)
Test Tube 100 mm & 200 mm 100 mm & 200 mm
Power Supply AC 220V / 50 Hz AC 220V / 50 Hz
Dimensions & Weight 870 x 520 x 480 mm & 24 kg 870 x 520 x 480 mm & 24 kg
Accessories Tube 100mm, 200mm, User Manual, Power Cord Peltier 100mm Tube, Syringe

Downloads

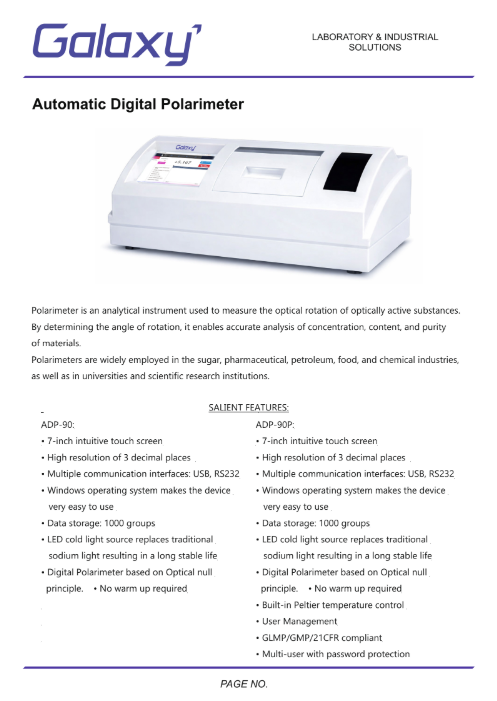

Catalogue Automatic Digital Polarimeter
Download PDF
