UV/VIS Spectrophotometer UV-X100

743,400.00

UV/VIS Spectrophotometer UV-X100 is a versatile analytical instrument designed for accurate and reliable measurement of sample absorbance across the ultraviolet and visible wavelength range. With precise wavelength selection, stable optical performance, and an intuitive user interface, the UV-X100 delivers fast, reproducible results for quantitative and qualitative analysis.

Description

The UV/VIS Spectrophotometer UV-X100 is a versatile and high-precision analytical instrument designed for accurate measurement across the ultraviolet and visible wavelength ranges.

The UV-X100 features a refined optical system that ensures excellent photometric accuracy and wavelength stability. Its advanced design minimizes stray light and reduces baseline drift, enabling consistent and repeatable results even during long analysis sessions. This stability makes the instrument suitable for laboratories where dependable data and reproducibility are essential.

It can be used for quantitative determination of compounds, purity testing, reaction monitoring, and compound identification. The broad UV and visible wavelength coverage allows comprehensive analysis of organic and inorganic substances.

User convenience is a key advantage of the UV-X100. The instrument is equipped with an intuitive interface and a clear digital display that presents measurement data in real time. Simple menu navigation and easy-to-use controls reduce operator training time and improve laboratory efficiency. Compatibility with standard cuvettes ensures smooth sample handling and easy integration into existing laboratory workflows.

The robust construction of the UV/VIS Spectrophotometer UV-X100 ensures durability and long-term reliability in demanding laboratory environments.

Applications of the UV/VIS Spectrophotometer UV-X100 include pharmaceutical formulation analysis, raw material testing, water and wastewater analysis, biochemical assays, food color and quality analysis, and environmental studies.

Its versatile measurement capabilities, user-friendly operation, and durable construction make it an excellent choice for laboratories seeking dependable UV-VIS analysis across scientific, industrial, and educational applications.

SALIENT FEATURES:

  • With spectral scanning function
  • Can measure upto 6 wavelengths at a single time
  • Large colorful screen for ease, can scan wavelength directly on the device
  • Parallel port & USB port
  • Imported japanese lamps & sensor results in perfect measurements

STANDARD ACCESSORIES:

  • Software
  • 10mm Glass Cuvette
  • 10mm Quartz Cuvette
  • Instruction Manual
  • Power Cord

Specifications

Model UV-X100
Make Galaxy
Bandwidth 1 nm
Cell Holder Sample & reference cuvette holder (both 10mm)
Optical System Double Beam (120 lines/mm Grating)
Wavelength Range 190 ~ 1100 nm
Wavelength Accuracy ±0.1 nm @656.1 nm, ±0.3 nm (all)
Wavelength Repeatability ± 0.2 nm
Scanning Speed High, Medium, Low (Max. 3000 nm/min)
Photometric Range -3 ~ 3A, 0~200%T, 0~9999C
Photometric Accuracy (T) ± 0.2%T
Photometric Repeatability 0.15%T, 0.001A (0-0.5A), 0.002A (0.5-1A)
Stability ± 0.001 A/h (500 nm, preheating for 1 hr)
Photometric Accuracy (A) <±0.002A (0~5A), ±0.004A (5~1A), ±0.006A (>2A)
Baseline Flatness & Noise ± 0.001 A/h, 0.0005A at 500 nm
Stray Light <0.03%T @ 220 nm, 360 nm
Data Output USB, RS232
Printer Port Parallel Port
Display 7″ Large Colourful LCD
Lamps Imported Xenon Lamp
Detector Silicone Photodiode
Power Supply AC 220V / 50Hz
Dimensions & Weight 590 x 475 x 250 mm & 20 kg

Downloads

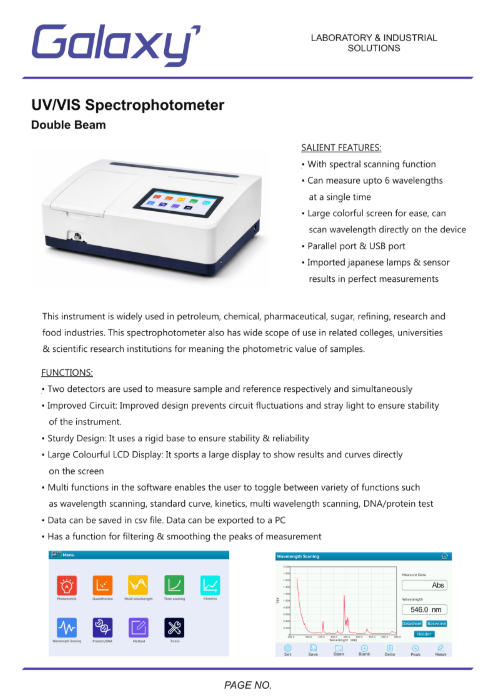

Catalogue UV/VIS Spectrophotometer UV-X100
