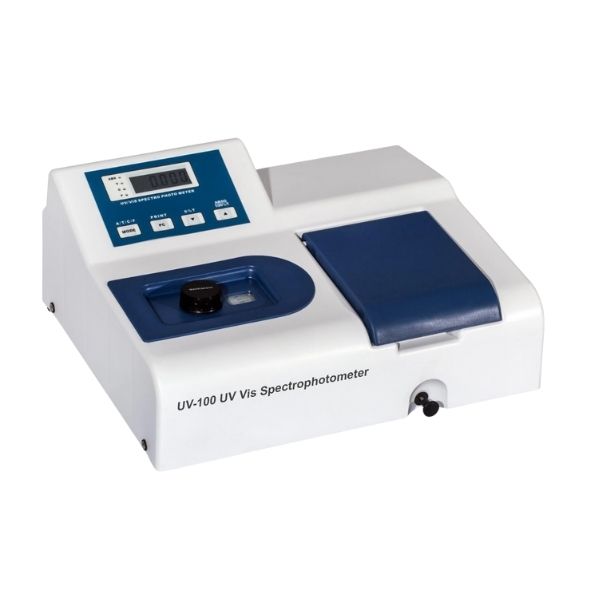

UV Vis Spectrophotometer UV-100

Original price was: ₹83,780.00.Current price is: ₹71,000.00.

UV Vis Spectrophotometer UV-100 is a high-performance analytical instrument designed for precise measurement of absorbance and transmittance of liquids across the ultraviolet and visible spectrum. Featuring a user-friendly interface, stable optics, and reliable wavelength accuracy, the UV-100 provides fast, reproducible results for quantitative and qualitative analysis.

SKU: UV-100 Category:

Description

The UV Vis Spectrophotometer UV-100 is a high-performance analytical instrument engineered to deliver precise and reliable measurement of light absorbance and transmittance across both the ultraviolet (UV) and visible (Vis) regions of the electromagnetic spectrum. Designed to meet the needs of modern laboratories in education, research, environmental testing, pharmaceuticals, biotechnology, and industrial quality control, the UV-100 combines accuracy, simplicity, and versatility in a compact and user-friendly package.

Engineered with the user in mind, the UV-100 features an intuitive interface with a high-resolution digital display and easy-to-navigate controls.

Durability and maintenance convenience are hallmarks of the UV-100 design. Long-life lamps and accessible optical components make routine maintenance and service straightforward, keeping total cost of ownership low and maximizing instrument uptime.

The spectrophotometer operates with regulated power and safety-interlocked compartments to protect users from direct light exposure.

Its reliable performance and adaptable features make it an indispensable tool for any analytical laboratory seeking high-quality spectrophotometric solutions.

SALIENT FEATURES:

  • Extremely easy to set up & simple to use
  • Monochromator with a holographic flashing grating
  • High wavelength precision, good monochromatic and low stray light
  • Direct read out of Absorption(ABS), Transmittance(%T), Concentration(C) & concentration setting function

STANDARD ACCESSORIES:

  • Glass Cell 10mm
  • Quartz Cell 10mm
  • Power Cord
  • Instruction Manual

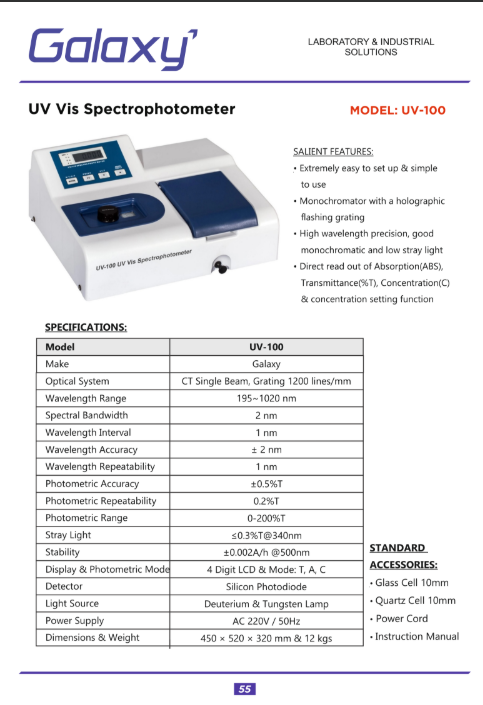

Specifications

<tr>Wavelength Interval1 nmA/h @ 500 nm<td>Power Supply

Model UV-100
Make Galaxy
Optical System CT Single Beam, Grating 1200 lines/mm
Wavelength Range 195 ~ 1020 nm
Spectral Bandwidth 2 nm
Wavelength Accuracy ± 2 nm Wavelength Repeatability 1 nm Photometric Accuracy ± 0.5%T Photometric Repeatability 0.2%T Photometric Range 0 – 200%T Stray Light ≤ 0.3%T @ 340 nm Stability ± 0.002
Display &amp; Photometric Mode 4 Digit LCD & Mode: T, A, C
Detector Silicon Photodiode
Light Source Deuterium & Tungsten Lamp
AC 220V / 50 Hz
Dimensions & Weight 450 × 520 × 320 mm & 12 kg

Downloads

UV Vis Spectrophotometer UV-100
Download PDF
