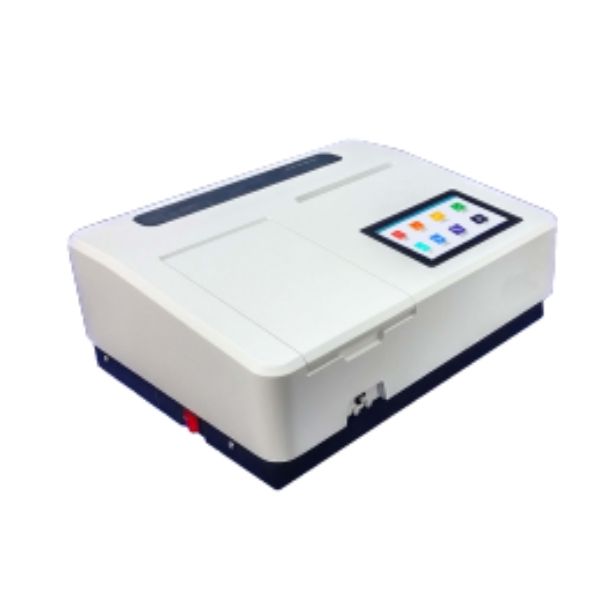

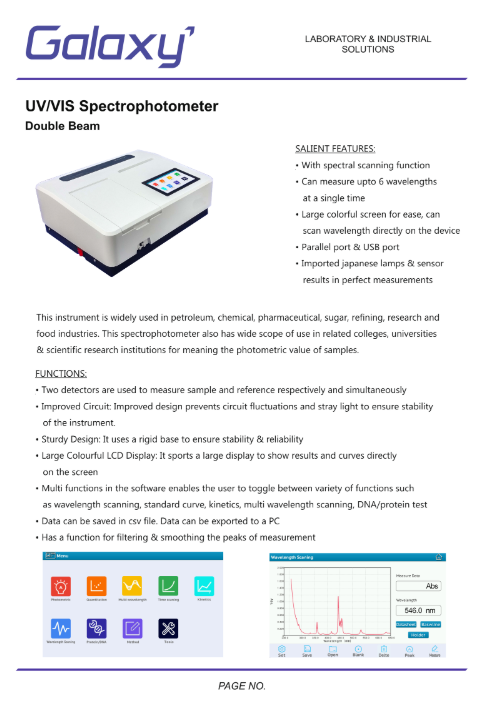

UV/VIS Spectrophotometer UV-X100 is a versatile analytical instrument designed for accurate and reliable measurement of sample absorbance across the ultraviolet and visible wavelength range. With precise wavelength selection, stable optical performance, and an intuitive user interface, the UV-X100 delivers fast, reproducible results for quantitative and qualitative analysis.
SALIENT FEATURES:
STANDARD ACCESSORIES:
| Model | UV-X100 |
| Make | Galaxy |
| Bandwidth | 1 nm |
| Cell Holder | Sample & reference cuvette holder (both 10 mm) |
| Optical System | Double Beam (1200 lines/mm Grating) |
| Wavelength Range | 190 ~ 1100 nm |
| Wavelength Accuracy | ±0.1 nm @ 656.1 nm, ±0.3 nm (all) |
| Wavelength Repeatability | ± 0.2 nm |
| Scanning Speed | High, Medium, Low (Max. 3000 nm/min) |
| Photometric Range | -3 ~ 3A, 0 ~ 200%T, 0 ~ 9999C |
| Photometric Accuracy (T) | ± 0.2%T |
| Photometric Repeatability | 0.15%T, 0.001A (0–0.5A), 0.002A (0.5–1A) |
| Stability | ± 0.001 A/h @ 500 nm, preheating for 1 hr |
| Photometric Accuracy (A) | ≤ ±0.002A (0–0.5A), ≤ ±0.004A (0.5–1A), ≤ ±0.006A (>2.0) |
| Baseline Flatness & Noise | ± 0.001 A/h, 0.0005 A at 500 nm |
| Stray Light | < 0.03%T @ 220 nm, 360 nm |
| Data Output | USB, RS232 |
| Printer Port | Parallel Port |
| Display | 7″ Large Colourful LCD |
| Lamps | Imported Xenon Lamp |
| Detector | Silicone Photodiode |
| Power Supply | AC 220V / 50 Hz |
| Dimensions & Weight | 590 × 475 × 250 mm & 20 kg |
