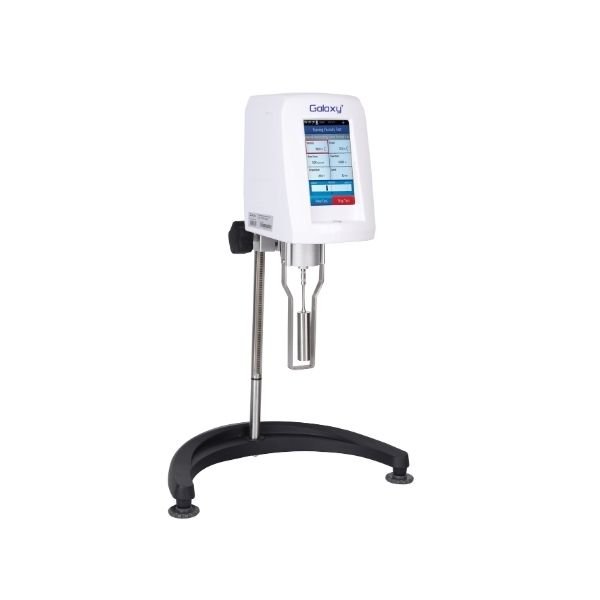

Digital Rotational Viscometer RV-1

Digital Rotational Viscometer RV-1 is a precision instrument designed to measure the viscosity of liquids accurately. Ideal for laboratory testing and quality control applications.

Description

The Digital Rotational Viscometer RV-1 is a high-performance laboratory instrument designed for accurate and repeatable viscosity measurement of liquids and semi-fluids across a wide range of industries.

With multiple selectable speeds and interchangeable spindles, the instrument easily adapts to samples of varying thickness and flow behavior.

The Digital Rotational Viscometer RV-1 is constructed using high-quality materials to withstand daily laboratory use. Easy spindle attachment and cleaning make routine maintenance quick and hassle-free, helping improve workflow efficiency.

In educational settings, it serves as an excellent teaching tool for demonstrating rheological principles and fluid behavior.

By combining precision engineering with practical usability, the Digital Rotational Viscometer RV offers a cost-effective solution for viscosity analysis. It supports informed decision-making by delivering accurate data that helps optimize formulations, maintain product consistency, and meet industry standards.

SALIENT FEATURES:
• Auto Range function
• More number of speed options
• Direct Viscosity reading and temperature display
• Large bright back-light LCD Display
• Viscosity value is accurate to 0.1 mpa.s
• With automatic scanning function, the instrument can automatically recommend a suitable combination of rotor and speed

STANDARD ACCESSORIES:
• 6 spindles
• Spindle Guard Leg
• Power Cord
• Stand Set
• Instruction Manual

Specifications

Model RV-1 RV-2
Make Galaxy Galaxy
Measuring Range mpa.s 100~1,30,00,000 mpa.s 100~4,00,00,000 mpa.s
Measurement Resolution 0.1 mpa.s (Full scale) 0.1 mpa.s (Full scale)
Speed 0.3 to 100 RPM 0.1 to 200 RPM
No of Speed 37 speed settings 58 speed settings
No of Standard Spindle 6 (R2, R3, R4, R5, R6, R7)
Display LCD
Auto Scan Function Can automatically scan and recommend the preferred combination of rotor and speed
Temperature Monitoring Optional – Feature available
Measurement Accuracy ±1% F.S
Repeatability ± 0.5% F.S
Output RS 232C Interface
Power Supply AC 220V / 50Hz
Dimension 300 × 300 × 450 mm
Weight 9 kgs

Downloads

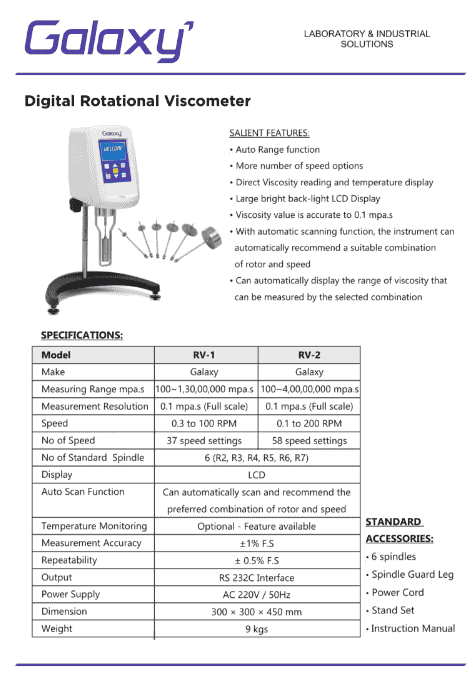

Catalogue Digital Rotational Viscometer RV-1
Download PDF
