Moisture Analyzer
(Touchscreen 100g x 0.001g)

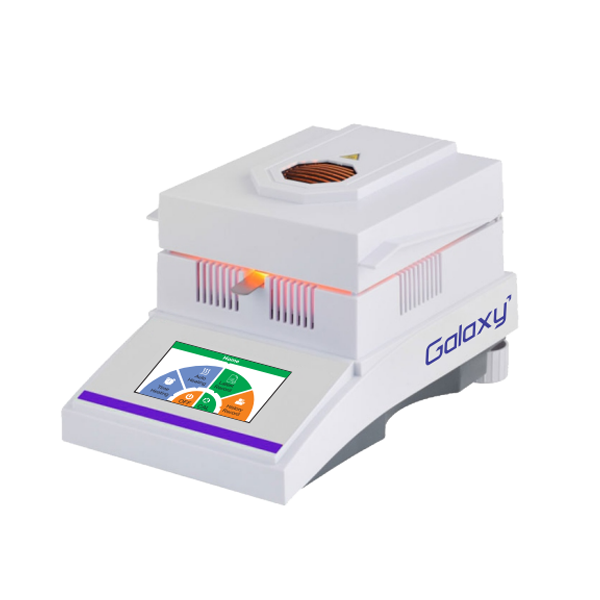

Galaxy MB-6800 Halogen Moisture Balance is an entry level moisture analyzer suitable for most applications. It’s heating system distributes heat uniformly over the sample & speeds up the drying process which delivers fast & precise measurements.

SKU: MB-6800 Category: EAN: 8900024986910


Galaxy MB-6800 Halogen Moisture Balance is a smart device that is used to test moisture percentage in samples on Loss on Drying (LOD) method. The weighing system is load cell based & heating is done using a halogen lamp. Heating & weighing operation works in a synchronized way which results in automatic calculation & display of various values such as Moisture %, Sample Weight, Dry Weight, Regain.

various samples for halogen moisture balance






Different forms of samples can be measured:
• Most samples which vaporize only moisture and cause no hazardous reaction under heating can be measured
Various materials can be measured:
• Cereal, starch, flour, meat, dair products, soil, ore, chemicals, paper, pulp, cotton, paper, plastic, fibers, chemicals, pharma

Mb6800’s halogen heating system distributes heat uniformly over the sample and speeds up the
drying process — delivering fast and precise measurements. Designed for tool-free cleaning, components
can be easily removed for quick and easy maintenance. Operating the MB6800 is intuitive with the
icon-driven menu navigation on the touchscreen display.

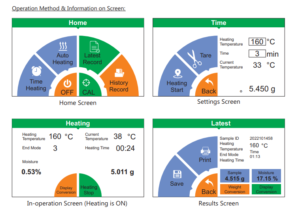

operation method and info on screen on halogen moisture balance
In the result screen, “Sample box” shows the final weight after drying, to see the starting weigh before
drying click on the weight conversion button.
By clicking on the display conversion we can see the solid weight, wet weight.

Additional information

Weight 5 kg
Dimensions 46 × 32 × 30 cm


Model MB-6800
Make Galaxy
Capacity 100g
Moisture Range 0~100%
Moisture Resolution 0.02% ~ 0.1%(sample≥2g)
Moisture Accuracy ±0.5%
Readability 0.001 g (1 mg)
Repeatability ±0.001 g
Linearity ±0.002 g
Minimum Capacity 0.01g
Display Touchscreen
Pan Size Ø 90 mm
Sensor Loadcell
Calibration External
Operating Temperature 5 to 35°C
Heating Source Halogen Lamp
Analysis Method Manual, Timed, Automatic
Temp. Sensor PT100
Temp. Setting Range 60 to 200°C
Temp. Setting Resolution 1°C
Time Setting 0 to 99 mins
Steel Sample Pan Yes (2 included)
No. of Storage 8 memory
Power Supply AC 220V / 50 Hz
Dimensions & Weight 350 x 215 x 192 mm & 4.5 kg

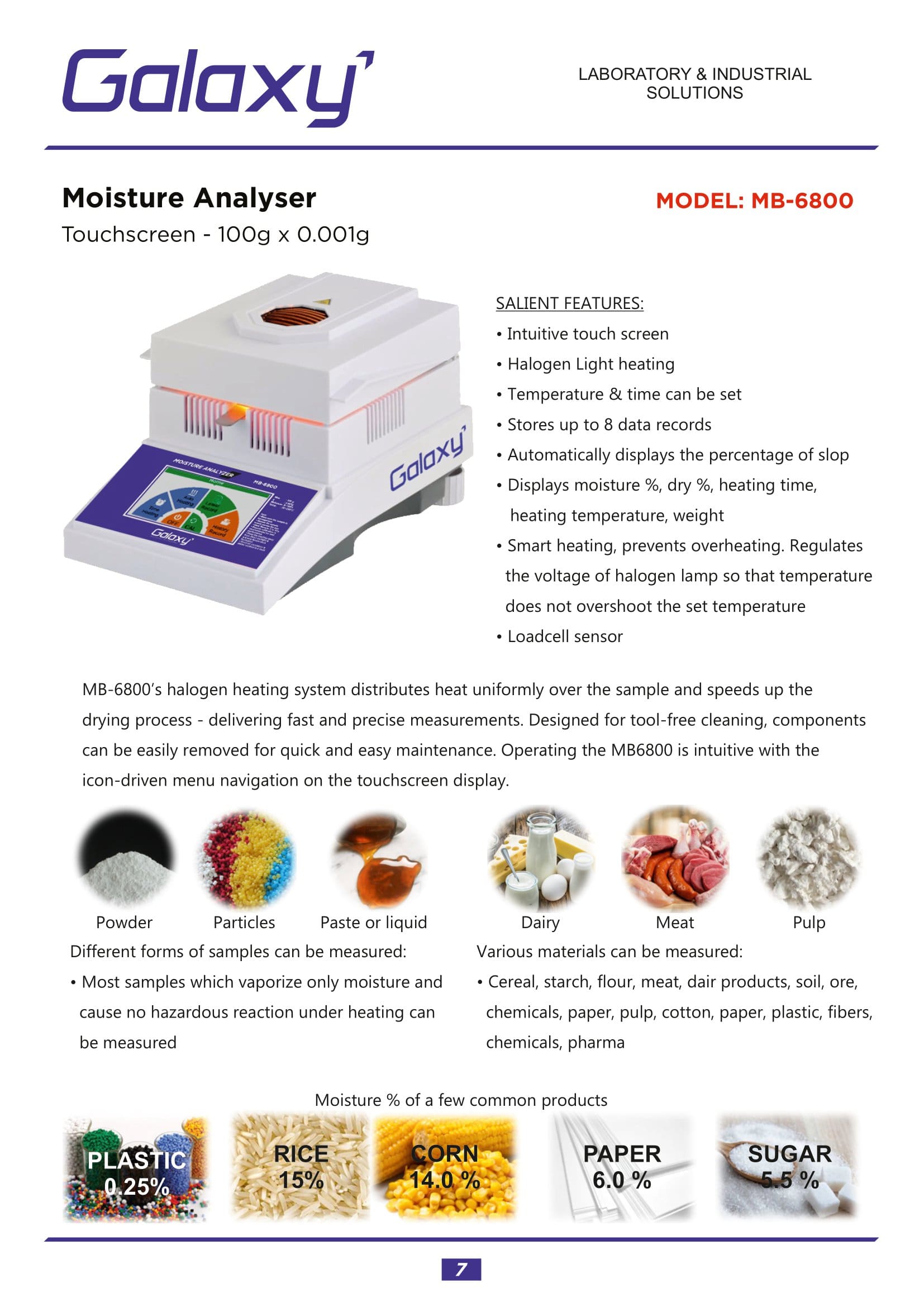

Catalog Moisture Analyzer MB-6800Download PDF
