hms5lc ceramic magnetic stirrer hot plate

Ceramic Magnetic Stirrer with Hot Plate
(Ceramic Top)

₹33,630.00

Galaxy HMS-5LC is a durable device. It is a feature loaded machine with 2 sensors, digital RPM display, timing setting,, heating, 5 litre stirring capacity, 2000 RPM stirring capacity. It’s ceramic work top makes it a favorite among lab users.

SKU: HMA-5LC Category: EAN: 8900024986903

Description

SALIENT FEATURES:
• Digital LCD Display with back light.
• Big Size Ceramic hot plate with flame protection and durability.
• Heating and stirring can proceed simultaneously.
• Temperature & Stirring speed is step-less adjusted.
• Real temperature & speed display on the screen simultaneously
• Two sensors, outside PT 100 sensor control the liquid temperature, inside K type sensor control the hot plate temperature (selectable).
• Over temperature alarm
• With Digital control & time setting

STANDARD ACCESSORIES:
• Stir Bar
• Temperature Probe
• Stand
• Instruction Manual

Specifications





Model HMS-5LC
Make Galaxy
Display LCD
Max. Volume (ml) 5000
Speed (RPM) 200-2000 RPM
Minimum Resolution (RPM) 100 RPM
Top Plate Size 190 x 190 mm
Plate Material Ceramic
Max. Temp. (Plate surface) 300°C
Temp. Sensor PT100
Temp. Controller PID
Temp. Resolution 0.1°C
Temp. Accuracy ±0.5°C ( <100°C) ± 1° C (<300°C)
Timer Yes
Power Wattage Heating: 600 W, Stirring: 20 W
Power Supply AC 220V / 50 Hz
Dimensions & Weight 300 x 190 x 126 & 5 kgs



Downloads

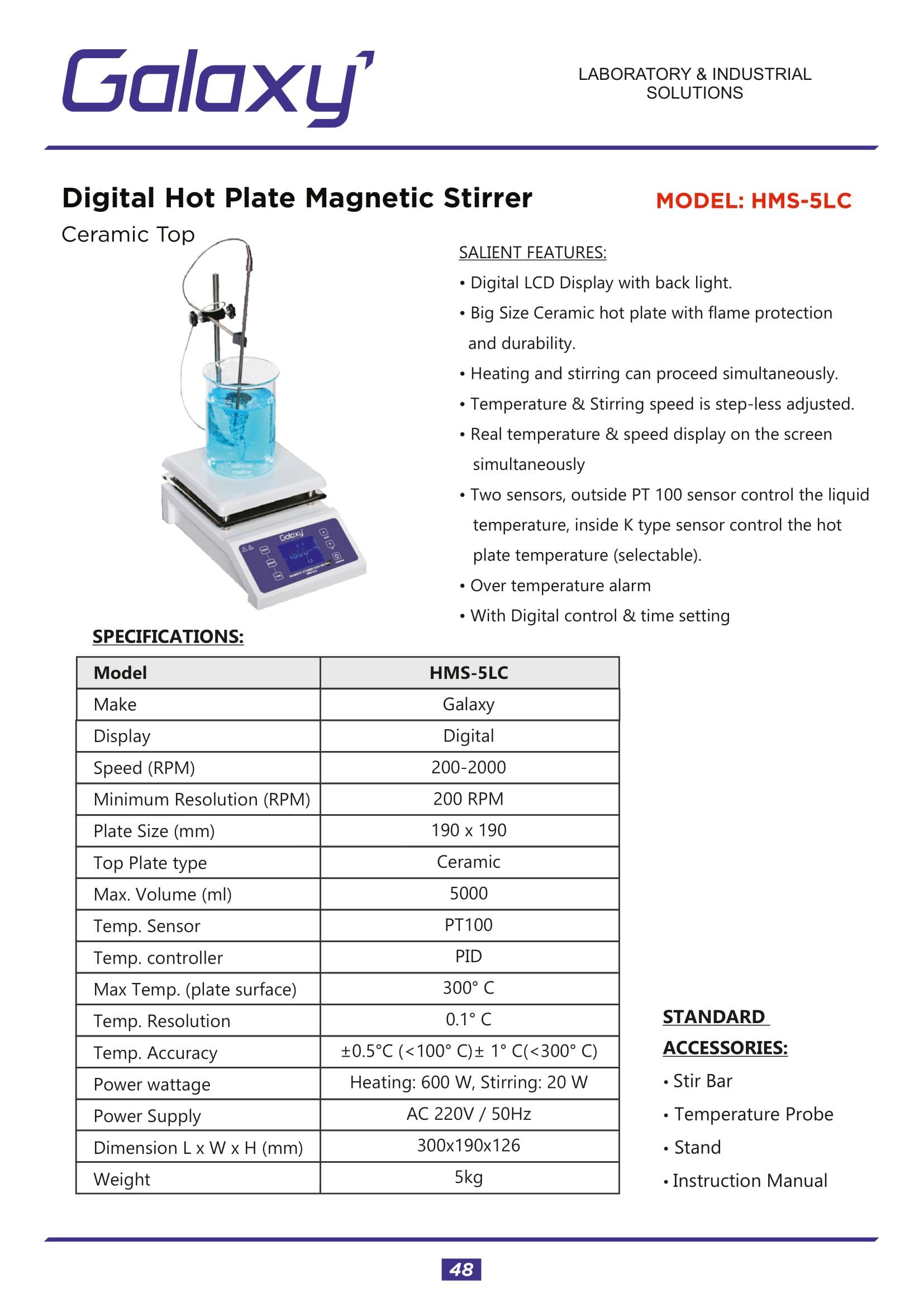

Catalog HMS-5LC Ceramic Magnetic Stirrer with Hot PlateDownload PDF
