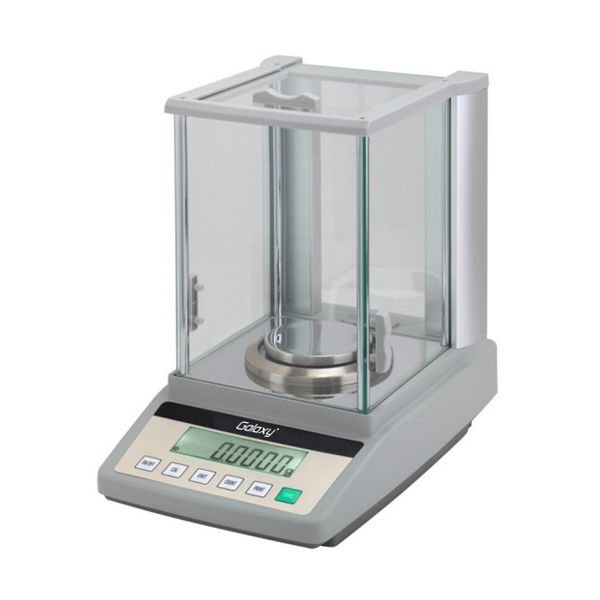

Analytical Balance
(0.0001g / 0.1 mg)


Galaxy MA Series are EMFC based analytical scales of class I. It’s internal calibration, multiple units, perfect functions makes it an ideal choice for entry level applications.

SKU: MA-220 Category:


Galaxy MA-220 & MA-320 are electromagnetic technology based analytical balance of class I. It sports an automatic internal calibration. Automatic internal calibration is performed using an in-built standard mass attached to motor inside the machine. It is designed & programmed in such a way that the machine self-calibrates itself when certain parameters such as temperature, pressure, sensitivity is changed. It not only makes the machines more accurate but also very easy to use. You can recalibrate the machine by just pressing the CAL button and the machine will self calibrate. But if you wish you calibrate it externally using your own standard weight, MA-220, MA-320 gives you the freedom to calibrate the device using your external standard weight too.

• Electro Magnetic Force Compensation
• Under-hook Weighing
• Internal Automatic Calibration
• LCD Display
• Multiple Weighing Units
• Full Tare
• RS232C Interface
• Counting Weighing Model
• Density Determination (Optional & Additional)

• Draft Ring
• Pan
• Power Cord
• Instruction Manual

Additional information

Weight 10 kg
Dimensions 49 × 38 × 52 cm

MA-220: 220 g / 0.0001 g, MA-320: 320 g / 0.0001 g


Model MA-220 MA-320
Capacity 220g 320g
Make Galaxy Galaxy
Readablity 0.0001g (0.1mg) 0.0001g (0.1mg)
Linearity ± 0.0003g ± 0.0003g
Minimum Capacity 0.01g 0.01g
Display LCD LCD
Pan Size Ø 90 mm Ø 90 mm
Response Time 4-6 sec 4-6 sec
Calibration Internal Calibration Internal Calibration
Tare Range Full Full
Operating Temperature 15 to 30°C 15 to 30°C
Operating Humidity 50-70% R.H 50-70% R.H
Warm Up time 30 min 30 min
Units g, ct, ozt, oz, GN, dwt, lb, mg g, ct, ozt, oz, GN, dwt, lb, mg
Key Sound Yes Yes
Weighing Chamber Height 210 mm
Baud Rate 1200, 2400, 4800, 9600 1200, 2400, 4800, 9600
Class I I
Interface RS-232C RS-232C
Date Output Command & Continuous Command & Continuous
Power Supply AC 220V / 50 Hz AC 220V / 50 Hz
Dimensions & Weight 220 x 360 x 345 mm & 9.5 kg 220 x 360 x 345 mm & 9.5 kg

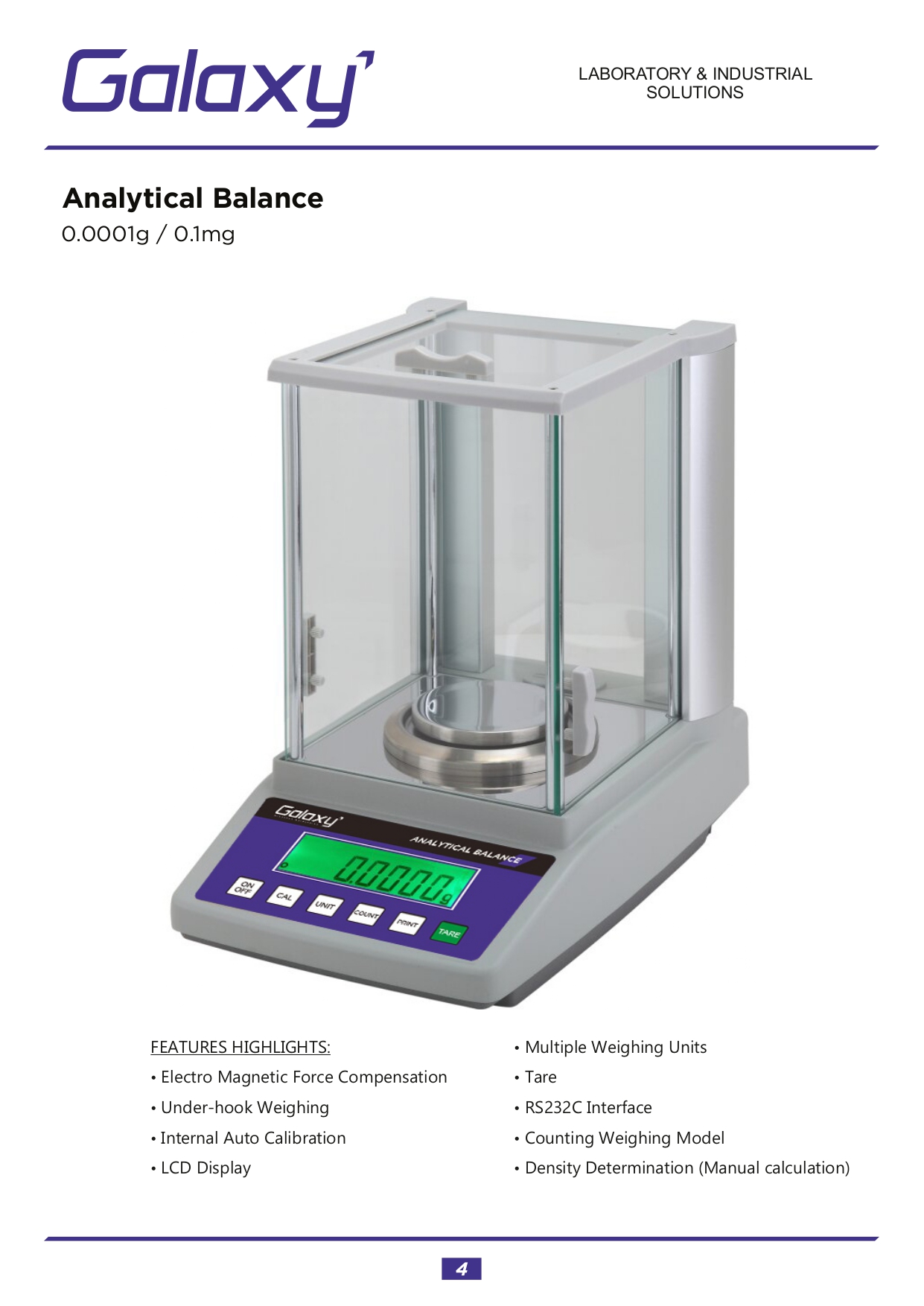

Catalog Analytical Balance 0.1mg MA-220 & MA-320Download PDF
